DP architects constructs zero energy building at BCA academy

Mar 22, 2015 by



all images courtesy of DP architects

dp-architects-zero-energy-building-bca-academy-singapore-designboom-01





the success of DP architects‘ ‘zero energy building’ at BCA academy in spearheading environmentally sustainable design had tremendous implications on the way electricity is used in singapore for specific types of structures. this goal aims to demonstrate the feasibility of architectural projects with minimal dependence on limited resources such as fossil fuels, concurrently creating a product resilient to climate change and user comfort.

dp architects zero energy building bca academy singapore designboom
low-emissivity glass and solar film coatings to reduce solar heat gain







a building management system functions as an active feedback instrument, monitoring real-time continuous data streams to maintain user comfort and minimize power usage. this was then supplemented by intelligent active mechanisms that help the project produce all of its energy needs by means of solar power and passive design principles.

dp architects zero energy building bca academy singapore designboom

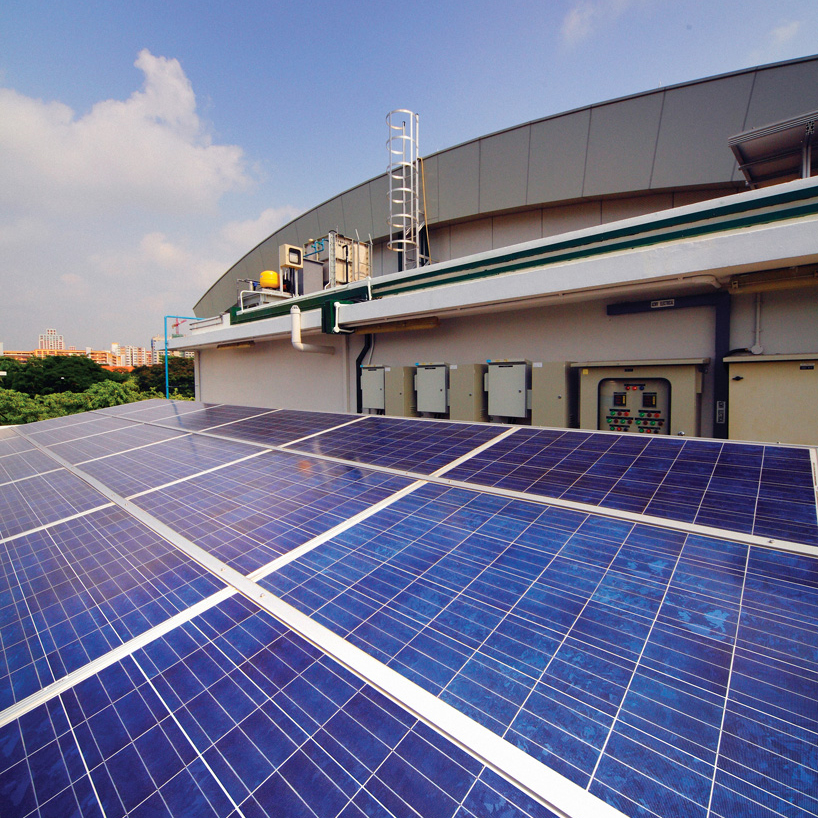

photovoltaic technology used on the roof







the facility uses heated air to induce solar-assisted stack ventilation in the school hall and classrooms. warmth accumulates in the ducts below the metal surface and, due to the buoyancy effect, the air will rise and flow out of the chimney. this creates a negative pressure, inducing cooler air from outside to enter.

dp architects zero energy building bca academy singapore designboom

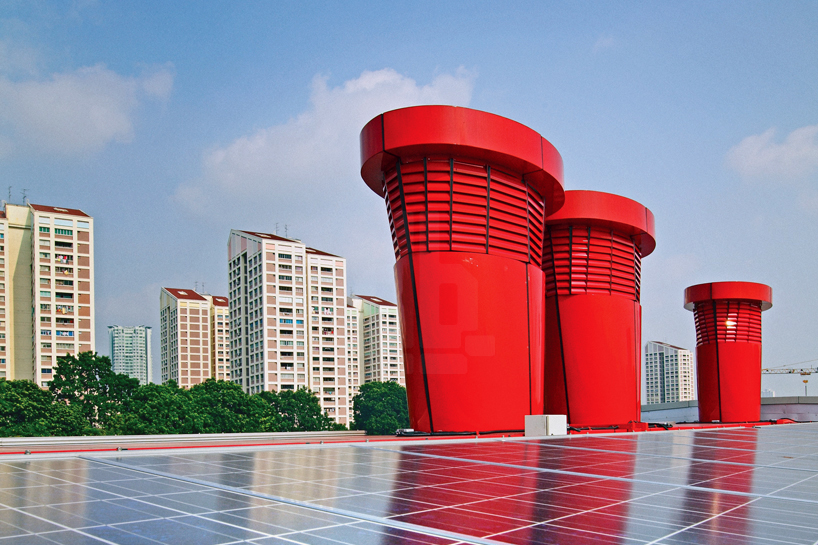

solar-assisted stack ventilation using heated air to induce ventilation in the school hall and classrooms







a vertical pipe in the roof invites natural sunlight into the interior space. the components have less surface area and hence are more efficient than skylights as less energy escapes from the interior.

dp architects zero energy building bca academy singapore designboom

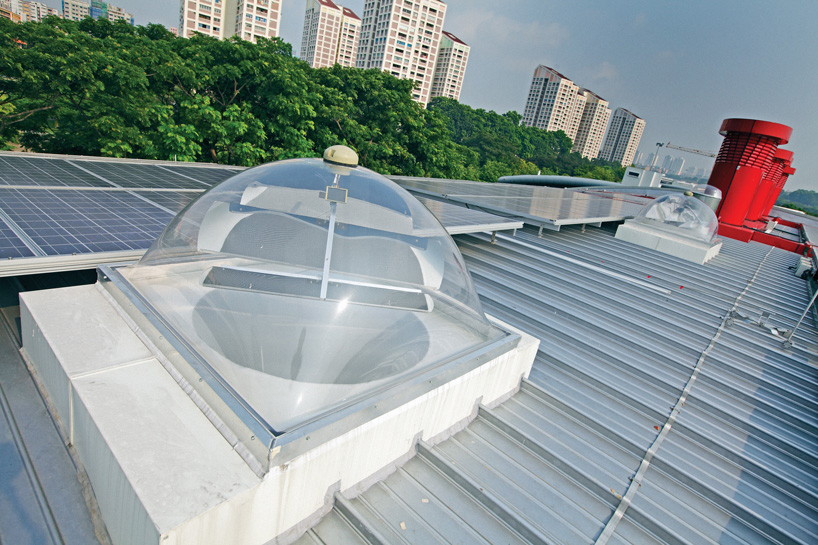

a vertical pipe in the roof invites natural sunlight into the interior space

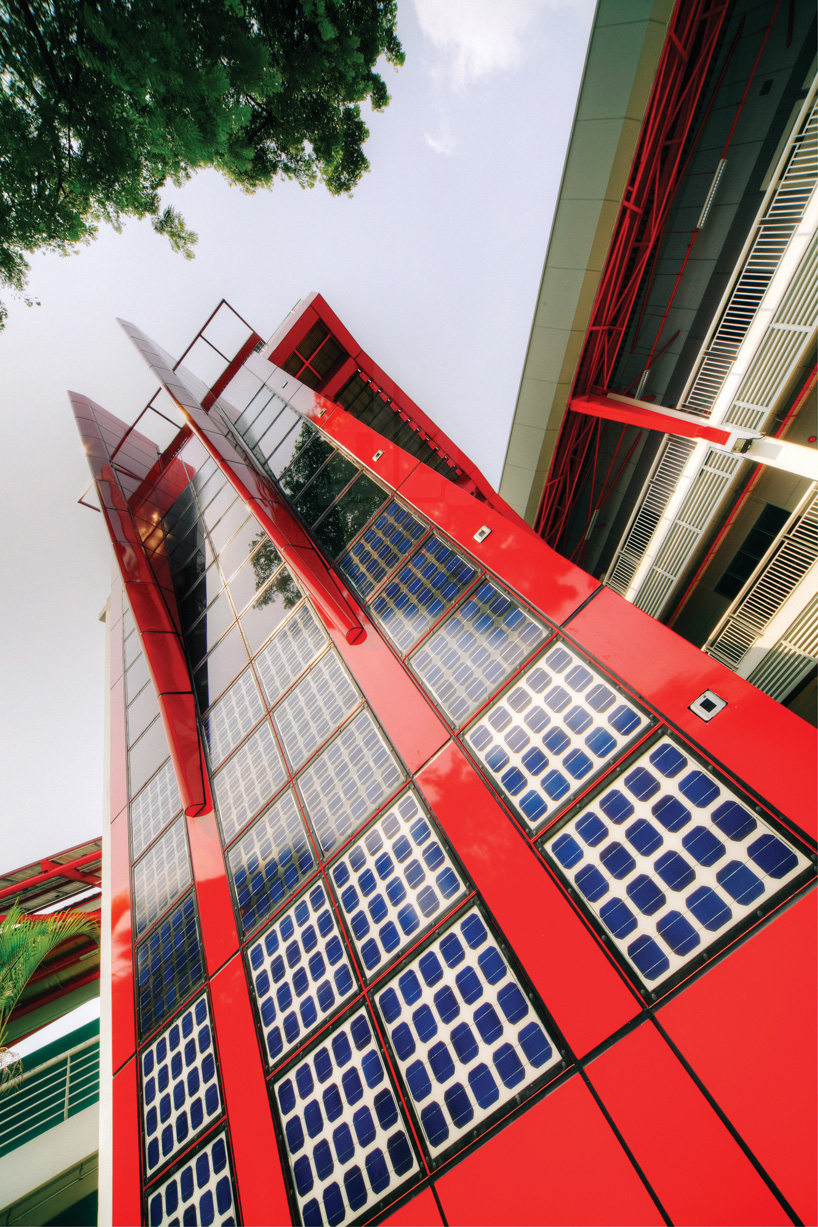

standalone solar panels were installed and integrated into the framework features such as sunshade, covered walkways and railings. they provide power directly to specific functions in ZEB such as the visitor center solar-charging kiosk.

dp architects zero energy building bca academy singapore designboom

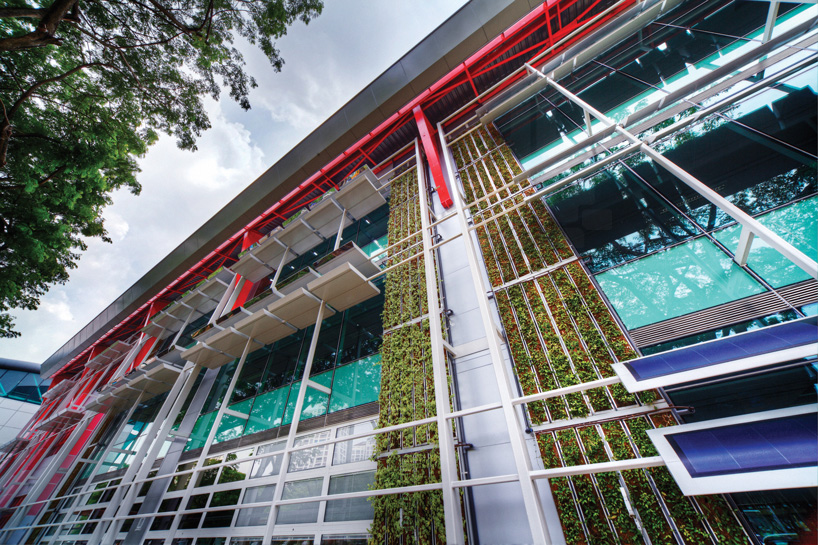

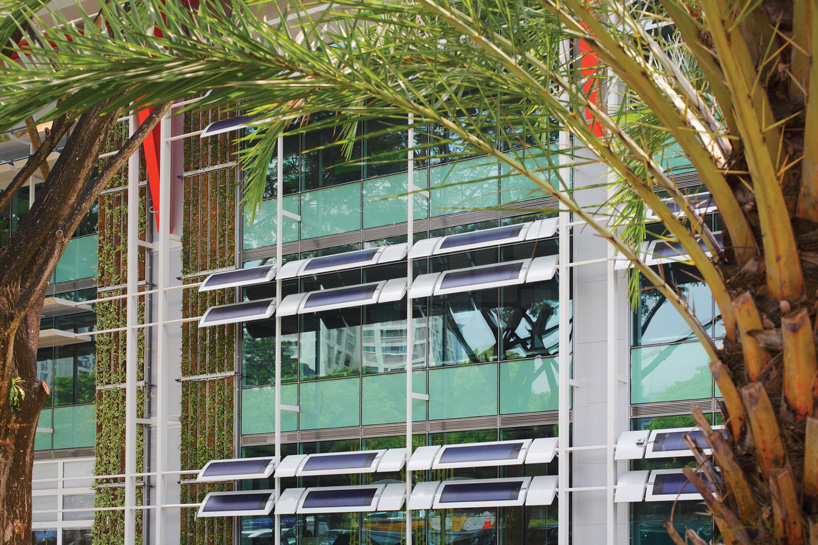

shading devices minimize solar heat gain without compromising daylighting and natural ventilation







mirror ducts made of highly reflective material channel daylight through horizontal elements in the false ceiling, which then exits through ceiling apertures above the user, allowing considerable energy saving.

dp architects zero energy building bca academy singapore designboom
reflective mirror ducts channel daylight through horizontal elements in the false ceiling







the green roof lowers the temperature from direct radiation heat gain, while green walls reduce heat transfer from the building envelope into the interior. in addition, sensors monitor both surface and ambient temperature.

dp architects zero energy building bca academy singapore designboom

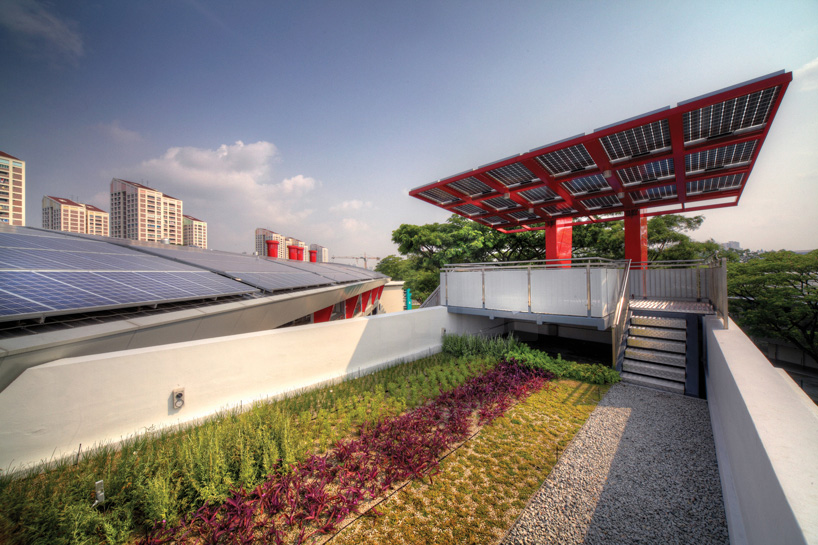

the green roof lowers the temperature from direct radiation heat gain

dp architects zero energy building bca academy singapore designboom

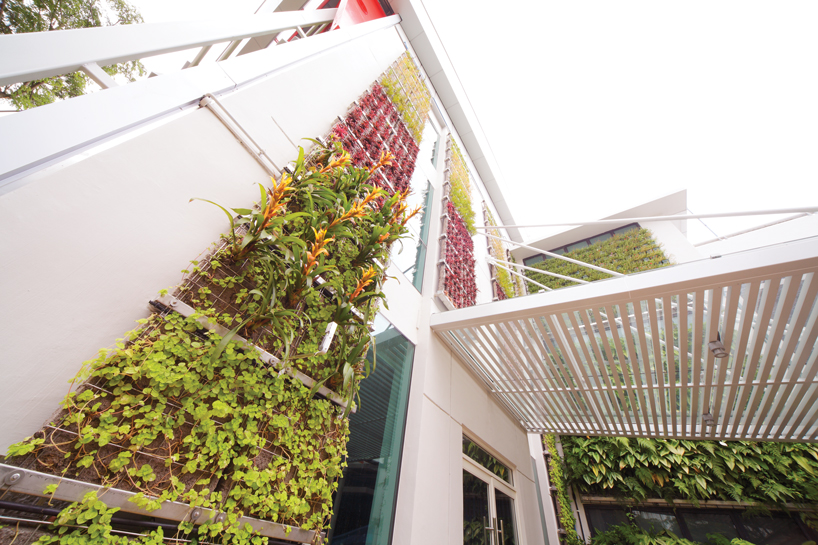

green walls reduce heat transfer into the interior


green walls reduce heat transfer from the building envelope into the interior





light shelves reflect natural daylight deep into the interior to reduce the use of artificial lighting. a ceiling material as reflective as the fixtures enhances efficiency.

dp architects zero energy building bca academy singapore designboom
light shelves reflect natural daylight into the interior to reduce the use of artificial lighting







using displacement ventilation, air is supplied through diffusers on the raised floor. the cooler new air spreads over the platform uniformly due to gravity, and the warmer air rises towards the ceiling, resulting in a continuous cycle. an individual cool fresh air supply duct at each work station improves the quality for the occupant. the surrounding ambient temperature can then be set slightly higher to reduce the air-conditioning load.

dp architects zero energy building bca academy singapore designboom
an individual cool fresh air supply duct at each work station improves the air quality for the occupant







ZEB opened its doors in october 2009. one year later, the work achieved its target of net zero energy consumption. as a result, the monthly surplus energy – fiscally equivalent to the electricity bill for 52 five-room housing and development board (HDB) flats – is distributed to the rest of the institution before any excess is supplied back to the the city grid.





designboom has received this project from our ‘DIY submissions‘ feature, where we welcome our readers to submit their own work for publication. see more project submissions from our readers here.
